SPECIFICATION:

GENERAL SPECIFICATIONS
• Nominal Diameter: 10 inch
• Rated Lmpedance: 4+4 ohms
• Operating Bandwidth: 25-1k hz(-3dB)
• Power Handling Capacity: 300 Watts
• Sensitivity (1W/M): 90 dB(+-3dB)
• Voice Coil Diameter: 2 inch

THIELE-SMALL PARAMETERS
• Resonance Frequency Fs: 37.9 HZ
• DC Resistance Re: 3.4+3.4 ohm
• Mechanical Q Factor Qms: 3.8514
• Electrical Q Factor Qes: 0.7502
• Total Q Factor Qts: 0.6279
• Equivalent Cas air load Vas: 28.058 L
• Surface Area of Cone Sd: 0.033 m2
• Efficiency Bandwidth Product EBP 60.36
• Voice Coil Over Hang X-max 9 mm.

PHYSICAL INFORMATION
• Basket: Chrome-Plated Steel Basket
• Magnet Type: 40+40 OZ
• Cone Material: Non-Press Paper Cone
• Surround: Foam

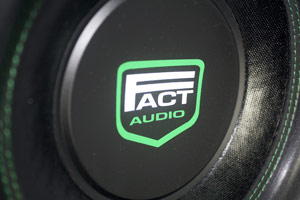

• Dust Cap: PP
• Damper: cloth

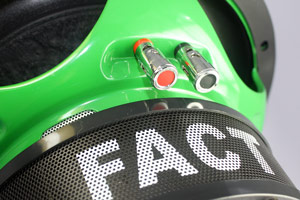

TERMINAL
Push Terminal
for Heavy-duty
and large diameter
speaker cable
