SPECIFICATION:

GENERAL SPECIFICATIONS
• Nominal Diameter: 12 inch
• Rated Lmpedance: 4+4 ohms
• Operating Bandwidth: 20-800 hz(-6dB)
• Power Handling Capacity: 500 Watts
• Sensitivity (1W/M): 94 dB(+-3dB)
• Voice Coil Diameter: 2.5 inch

THIELE-SMALL PARAMRTERS
• Resonance Frequency Fs: 30.2 HZ
• DC Resistance Re: 3.4 ohm+3.4 ohm
• Mechanical Q Factor Qms: 4.1695
• Electrical Q Factor Qes: 0.4683
• Total Q Factor Qts: 0.421
• Equivalent Cas air load Vas: 67.8816 L
• Surface Area of Cone Sd: 0.0491 m2
• Efficiency Bandwidth Product EBP 71.73
• Voice Coil Over Hang X-max 9 mm

PHYSICAL INFORMATION

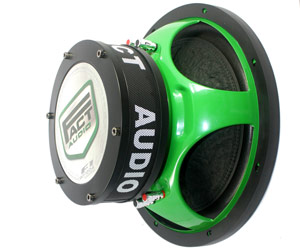

• Basket: Chrome-Plated Steel Basket
• Magnet Type: 50+50 OZ
• Cone Material: Non-Press Paper Cone

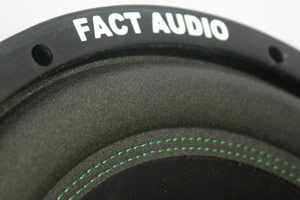

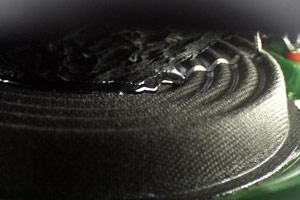

• Surround: Foam
• Dust Cap: PP

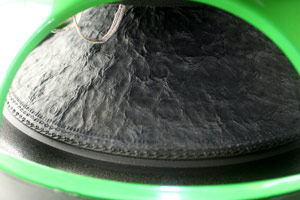

• Damper: cloth

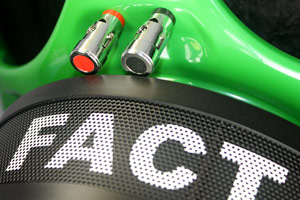

TERMINAL
Push Terminal
for Heavy-duty
and large diameter
speaker cable
